Upgrade 10G DWDM 80km to 100G with EDFAMUX & QSFP28 PAM4 DWDM transceivers
The EDFAMUX enables a straightforward upgrade from 10G to 100G DWDM networks, extending reach up to 80 km.
By integrating an erbium-doped fiber amplifier (EDFA) and dispersion compensator within a single 1RU 19" chassis, it simplifies deployment and reduces complexity. When paired with our QSFP28 100G PAM4 DWDM 2x50G transceivers, the EDFAMUX delivers enhanced signal integrity and extended transmission distances.
This solution is ideal for network operators seeking to enhance bandwidth without the need for costly new fiber installations. The EDFAMUX is fully compatible with major networking equipment brands, ensuring seamless integration into existing infrastructures. Its compact design and efficient performance make it a cost-effective choice for upgrading legacy systems to meet growing data demands.

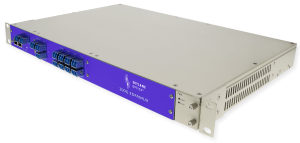

100G DWDM EDFAMUX
8Ch Active MUX EDFAs and Tunable Dispersion Compensator, 8 x100G, 80km, Power Budget 18dB, Channels 20-27 C-Band 100Ghz:
SK-DWDM-8x100G-EDFAMUX-80km
SK-DWDM-8x100G-EDFAMUX-120km
SK-DWDM-8x100G-EDFAMUX-120km+UPG
16Ch Active MUX EDFAs and Tunable Dispersion Compensator, 16 x100G, 80km, Power Budget 18dB. Channels 20-35 C-Band 100Ghz:
SK-DWDM-16x100G-EDFAMUX-40km
SK-DWDM-16x100G-EDFAMUX-80km
MSA Compliant 100GBase-DWDM PAM4 QSFP28 Transceiver C-Band Channel DW21 100GHz (SMF, 1560.61nm, 80km w/EDFA/DCM, LC, DOM).
From 1560.61nm channel 20 to 1529.55 nm channel 60, total 40 channels.
Part Number Q2D21080C00F000 (Datasheet).

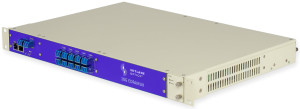

Reach up to 200km with new 10G EDFAMUX solutions
Skylane Optics' EDFAMUX solution offers a seamless upgrade path for network operators seeking to enhance their 10G DWDM systems. By integrating an erbium-doped fiber amplifier (EDFA) and dispersion compensation into a single 1RU 19″ chassis, EDFAMUX extends the reach of 10G DWDM signals up to 200 km.
This solution simplifies deployment and reduces complexity, making it an ideal choice for operators looking to increase capacity without the need for costly new fiber installations. When paired with our high-performance 10G SFP+ transceivers, EDFAMUX ensures reliable and efficient long-distance transmission.
Available models include:
- SKY-DWDM-10x10G-EDFAMUX-140km
- SKY-DWDM-10x10G-EDFAMUX-200km
- SKY-DWDM-16x10G-EDFAMUX-140km
Need more information?
Contact us if you have any questions about EDFAMUX, transceivers, or any other products.
User Manual
Skylane EDFAMUX User Installation Manual (.pdf 1MB)
