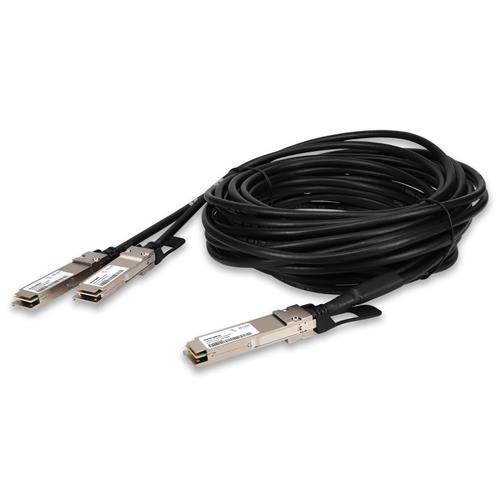

Mellanox® MCA7J50-H008R Compatible 200GBase-CU QSFP56 to 2xQSFP56 Direct Attach Cable (Active Twinax, 8m, Infiniband HDR)
MCA7J50-H008R-SKY
This is a Mellanox® MCA7J50-H008R compatible 200GBase-CU QSFP56 to 2xQSFP56 Infiniband HDR direct attach cable that operates over active copper with a maximum reach of 8.0m (26.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Technical Specifications | |
|---|---|
| Active/Passive: | Active |
| Compatible OEM: | Mellanox® |
| Environment: | 0 to 70°C |
| Form Type: | QSFP56 to 2xQSFP56 |
| Length (ft): | 26.2 |
| Length (m): | 8 |
| Media: | Copper |
| Speed: | 200GBase |
| Speed Description: | 200-Gigabit |
| Transceiver Type: | CU |
| Product Shipping Dimension(HxWxD): | 3 in. x 14 in. x 14 in. |
| Product Shipping Weight(LB): | 1.4 |
| Country Of Origin: | USA/UK |
| ECCN: | 5A991 |
| HTS-Harmonized Code (UK): | 85176200 |
| HTS-Harmonized Code (US): | 8517.62.0090 |
| TAA Compliant: | Yes |
| UNSPSC Code: | 26121609 |
| What's In The Box: | 1x direct attach cable |
