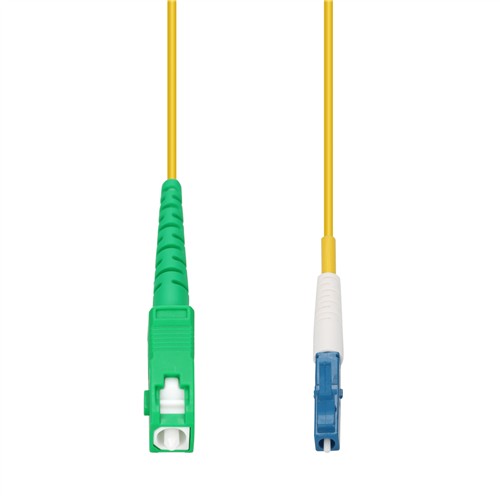

14m ASC to LC Yellow OS2 Simplex OFNR (Riser-Rated) SMF Fiber Patch Cable
SKY-ASC-LC-14MS9SMF
| Technical Specifications | |
|---|---|
| Armored: | No |
| Bend Insensitivity: | G.657.A1 |
| Cable Length: | 14m |
| Cable Mode: | Simplex |
| Cable Type: | OS2 |
| Color: | Yellow |
| Compatible OEM: | Industry Standard |
| Connector: | ASC (Male) to LC (Male) |
| Connector 1 Boot Style: | Standard Boot |
| Connector 1 Color: | Green |
| Connector 1 Ferrule Polish Type: | APC (Angled Physical Contact) |
| Connector 2 Boot Style: | Standard Boot |
| Connector 2 Color: | Blue |
| Connector 2 Ferrule Polish Type: | UPC (Ultra Physical Contact) |
| Core/Cladding: | 9/125µm |
| Environment: | Indoor |
| Fiber Termination: | APC - Angled Physical Contact |
| Fiber Type: | SMF |
| Fire Rating: | Riser (OFNR) |
| Insertion Loss Grade: | Grade C |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Jaket Type: | Riser |
| Length (ft): | 45.9 |
| Length (m): | 14 |
| Polarity: | Type A-A |
| Strand Count: | 1 |
| Termination Type: | Straight |
| Outer Diameter: | 2.0mm |
| Product Shipping Dimension(HxWxD): | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB): | 0.8 |
| Country Of Origin: | China |
| ECCN: | EAR99 |
| HTS-Harmonized Code (UK): | 85447000 |
| HTS-Harmonized Code (US): | 8544.70.0000 |
| TAA Compliant: | No |
| UNSPSC Code: | 26121609 |
| What's In The Box: | 1x patch cable |
