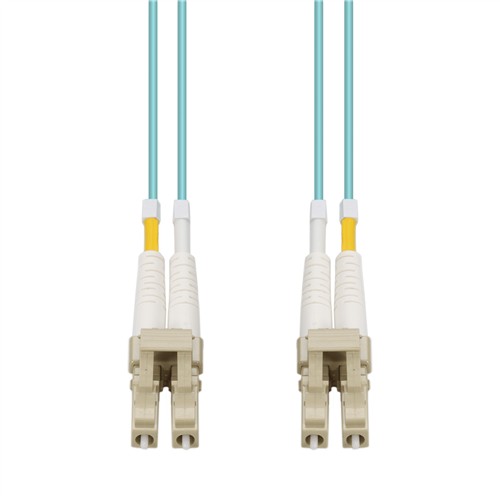

20m LC to LC Aqua OM4 Duplex LSZH Fiber Patch Cable
SKY-LC-LC-20M5OM4LZ
This is a 20m LC to LC Aqua OM
| Technical Specifications | |
|---|---|
| Armored: | No |
| Bend Insensitivity: | G.657.A1 |
| Cable Length: | 20m |
| Cable Mode: | Duplex |
| Cable Type: | OM4 |
| Color: | Aqua |
| Compatible OEM: | Industry Standard |
| Connector: | LC (Male) to LC (Male) |
| Connector 1 Boot Style: | Standard Boot |
| Connector 1 Color: | Beige |
| Connector 1 Ferrule Polish Type: | UPC (Ultra Physical Contact) |
| Connector 2 Boot Style: | Standard Boot |
| Connector 2 Color: | Beige |
| Connector 2 Ferrule Polish Type: | UPC (Ultra Physical Contact) |
| Core/Cladding: | 50/125µm |
| Environment: | Indoor |
| Fiber Termination: | UPC - Ultra Physical Contact |
| Fiber Type: | MMF |
| Fire Rating: | General Purpose (OFNG) |
| Insertion Loss Grade: | Grade C |
| Jacket Material: | LSZH (Low Smoke Zero Halogen) |
| Jaket Type: | LSZH |
| Length (ft): | 65.62 |
| Length (m): | 20 |
| Polarity: | Type A-B |
| Strand Count: | 2 |
| Termination Type: | Crossover |
| Outer Diameter: | 2.0mm |
| Product Shipping Dimension(HxWxD): | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB): | 1.1 |
| ECCN: | EAR99 |
| HTS-Harmonized Code (UK): | 85447000 |
| HTS-Harmonized Code (US): | 8544.70.0000 |
| UNSPSC Code: | 26121609 |
| What's In The Box: | 1x patch cable |
