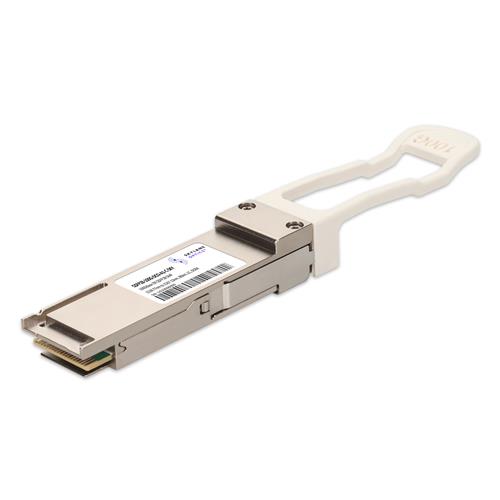

Picture of Cisco® Compatible (with select systems) 100GBase-ZR QSFP28 Transceiver (SMF, 1528.77nm to 1567.13nm, 80km, LC, DOM) AutoTune 100GHz

Cisco® Compatible (with select systems) 100GBase-ZR QSFP28 Transceiver (SMF, 1528.77nm to 1567.13nm, 80km, LC, DOM) AutoTune 100GHz

QSFP28-100G-DCO-A1-C-SKY

This Cisco® compatible (with select systems) QSFP28 transceiver provides 100GBase-ZR throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1528.77nm to 1567.13nm, with 100GHz spacing via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Cisco®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Data Sheets
Technical Specifications
Compatible OEM:Cisco®
Connector:LC
DOM:DOM
Environment:0 to 70°C
Form Type:QSFP28
Media:SMF
Reach:80km
Speed:100GBase
Speed Description:100-Gigabit
Transceiver Type:DCO
Wavelength:1528.77nm to 1567.13nm
Product Shipping Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB):0.4
ECCN:5A991
HTS-Harmonized Code (UK):85176200
HTS-Harmonized Code (US):8517.62.0090
UNSPSC Code:43201553
What's In The Box:1x transceiver
