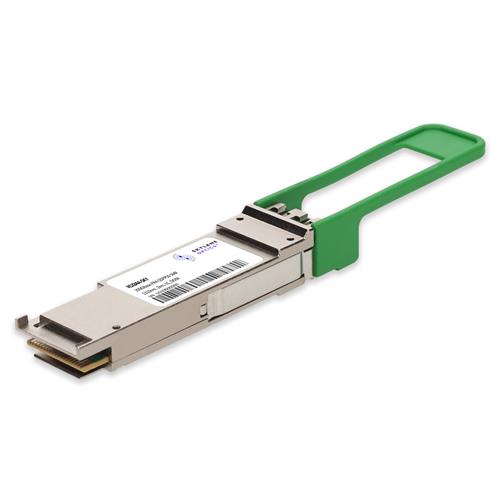

Picture of HP® R5Z84A Compatible 200GBase-FR4 QSFP56 Transceiver (SMF, 1310nm, 2km, LC, DOM, CMIS 4.0)

HP® R5Z84A Compatible 200GBase-FR4 QSFP56 Transceiver (SMF, 1310nm, 2km, LC, DOM, CMIS 4.0)

R5Z84A-SKY

This HP® R5Z84A compatible QSFP56 transceiver provides 200GBase-FR4 throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent HP® transceiver. It can operate at temperatures between 0 and 70C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Data Sheets
Technical Specifications
Compatible OEM:HP®
Connector:LC
DOM:DOM
Environment:0 to 70°C
Form Type:QSFP56
Media:SMF
Reach:2km
Speed:200GBase
Speed Description:200-Gigabit
Transceiver Type:FR4
Wavelength:1310nm
Product Shipping Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB):0.4
ECCN:5A991
HTS-Harmonized Code (UK):85176200
HTS-Harmonized Code (US):8517.62.0090
UNSPSC Code:43201553
What's In The Box:1x transceiver
