Picture of MSA Compliant GPON OLT SFP C+ Transceiver (1490nmTx/1310nmRx, 2.5Gbps/1.25Gbps, 32dBm, SC)

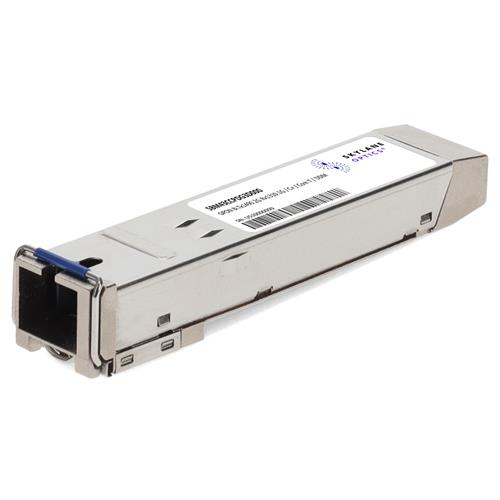

MSA Compliant GPON OLT SFP C+ Transceiver (1490nmTx/1310nmRx, 2.5Gbps/1.25Gbps, 32dBm, SC)

SBM43CCPDG3D000

This MSA compliant SFP transceiver provides 2.4Gbs/1.2Gbs-C+ throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1490nmTx/1310nmRx via an SC connector. It can operate at temperatures between -40 and 85C. It is guaranteed to be 100% compatible with the equivalent MSA compliant transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Data Sheets
Technical Specifications
Compatible OEM:MSA Compliant
Connector:SC
DOM:DOM
Environment:0 to 70°C
Form Type:SFP
Media:SMF
Reach:20km
Speed:2.4Gbs/1.2Gbs
Speed Description:2.4-Gigabit/1.2-Gigabit
Transceiver Type:C+
Wavelength:1490nmTx/1310nmRx
Product Shipping Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB):0.4
ECCN:5A991
HTS-Harmonized Code (UK):85176200
HTS-Harmonized Code (US):8517.62.0090
UNSPSC Code:43201553
What's In The Box:1x transceiver
