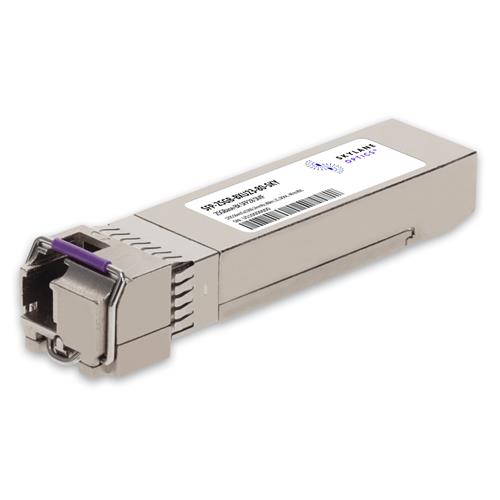

Picture of MSA Compliant 25GBase-BX SFP28 Transceiver (SMF, 1295.56nmTx/1309.14nmRx, 80km, LC, DOM)

MSA Compliant 25GBase-BX SFP28 Transceiver (SMF, 1295.56nmTx/1309.14nmRx, 80km, LC, DOM)

SFP-25GB-BXU23-80-SKY

This MSA compliant SFP28 transceiver provides 25GBase-BX throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1295.56mTx/1309.14nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Data Sheets
Technical Specifications
Compatible OEM:MSA Compliant
Connector:LC
DOM:DOM
Form Type:SFP28
Media:SMF
Reach:80km
Speed:25GBase
Speed Description:25-Gigabit
Transceiver Type:BX
Wavelength:1295nmTx/1309nmRx
Product Shipping Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB):0.4
ECCN:5A991
HTS-Harmonized Code (UK):85176200
HTS-Harmonized Code (US):8517.62.0090
UNSPSC Code:43201553
What's In The Box:1x transceiver
